InnPho紅外隔離器，紅外偏振片，紅外鏡頭，紅外準直鏡

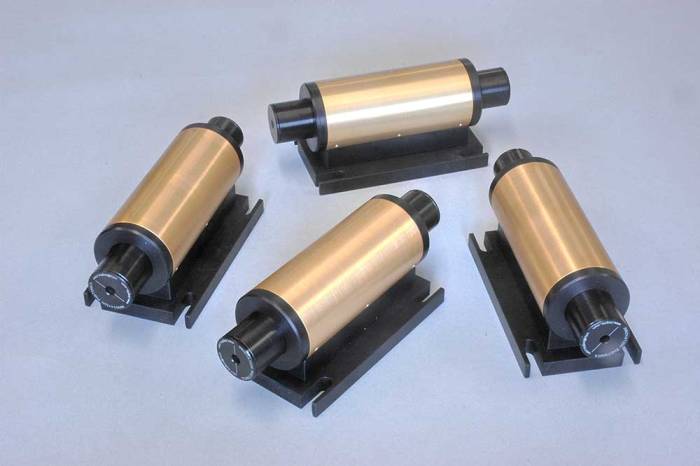

紅外光隔離器
波長范圍 4-14um，4-4.5mm狹縫
Catalog
Number |
Aperture |
Transmittance |
Isolation |
Total
Length |
Power
Rating |
| FIO-5-λ |
4.5 mm |
75-86% |
>> 1000:1 |
～ 6″ |
inquire |
Catalog
Number |
Aperture |
Transmittance |
Isolation |
Total
Length |
Power
Rating |
| FIO-4-4.5 |
4.0 mm |
75-86% |
> 10,000:1 |
～ 2″ |
Discuss |

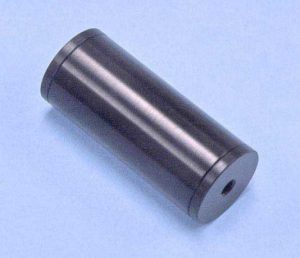

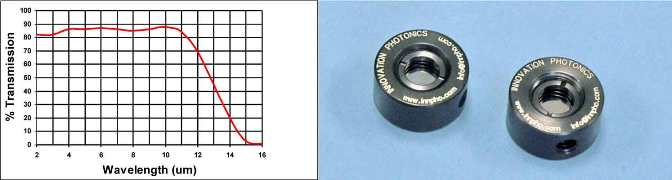

寬波段紅外偏振片，2-12um
| Catalog Number |
Aperture |
Transmittance of P-Ray |
Power Rating |
Extinction of Crossed Pair |
PGC-4
PGC-5 |
4 mm
5 mm |
≥98%
≥98% |
100 MW/cm2
100 MW/cm2 |
2×105
2×105 |
PGC-4: 15 mm Diameter x 36 mm long
PGC-5: 1-inch long x 2.2 inches long

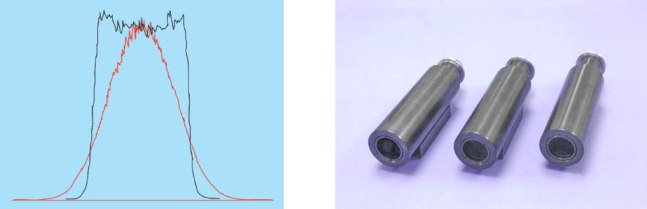

平頂擴束器
Spectral Range: 350 nm to 2 μm
Cross section uniformity: ±5-10% (neglecting speckle)
Laser damage threshold: 20 J/cm2, 1054 nm, 1 ns pulse
Part
Number |
Description |
| ELG-10-λ |
Flat-Top Beam Expander, 10 mm dia collimated output |
| ELG-20-λ |
Flat-Top Beam Expander, 20 mm dia collimated output |
| ELG-45-λ |
Flat-Top Beam Expander, 45 mm dia collimated output |
| GCE-9 |
Flat-Top Converter element, mounted |

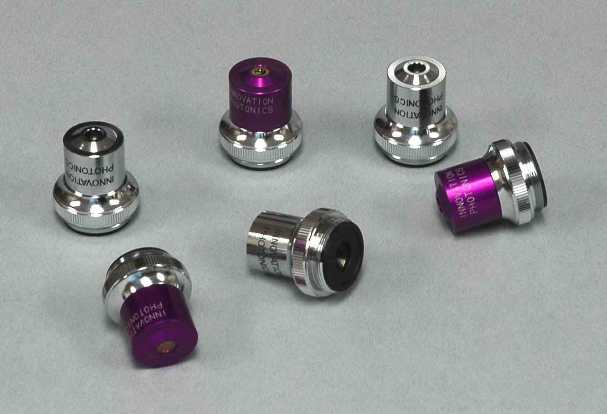

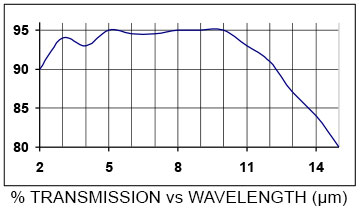

光纖準直鏡 紅外鏡頭
Catalog
Number |
Focal Length |
Working Distance |
Numerical
Aperture |
Maximum Beam
Dia |
Magnification |
| LFO-2-4-λ |
4.0 mm |
3.6 mm |
0.19 |
1.5 mm |
40X |
| LFO-2-6-λ |
6.0 mm |
5.2 mm |
0.17 |
2.0 mm |
27X |
| LFO-2-9-λ |
9.0 mm |
8.1 mm |
0.50 |
2.0 mm |
18X |
| LFO-3-12-λ |
12.0 mm |
10.9 mm |
0.30 |
2.5 mm |
13X |
| LFO-3-15-λ |
15.0 mm |
13.4 mm |
0.53 |
2.5 mm |
11X |
Catalog
Number |
Clear Aperture |
Numerical Aperture |
Working Distance |
Focal Length |
| LFO-5-6 |
5 mm |
0.25 |
5.3 mm |
6 mm |
| LFO-5-12 |
5 mm |
0.13 |
11.5 mm |
12 mm |
| LFO-5-18 |
5 mm |
0.08 |
17.5 mm |
18 mm |

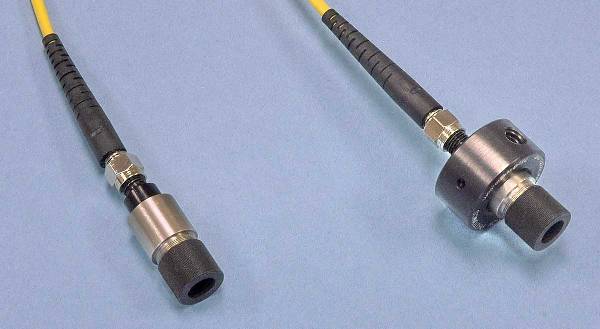

紅外光纖準直鏡
2-12um
| Catalog Number |
Focal Length |
Clear Aperture |
Numerical Aperture |
| FCR-6-λ |
6 mm |
0.5 mm |
0.25 |
| FCR-12-λ |
12 mm |
1.0 mm |
0.13 |
| FCR-18-λ |
18 mm |
1.6 mm |
0.08 |
|
